When gas is stored, transferred or controlled at high pressure, reliable isolation is essential. A shut-off valve may be a relatively small part of the wider system, but when an operator needs to stop the flow, it has one very important job to do: provide secure, predictable isolation.
That is the purpose behind Blackhall Engineering’s new Series 1020 Manual Shut-Off Valve, a high pressure shut off valve developed for demanding gas applications.
The Series 1020 adds a dedicated manual isolation solution to Blackhall’s specialist industrial gas portfolio, drawing on more than 50 years of work with cryogenic, hydrogen and industrial gas valve applications.
Reliable Manual Isolation for High-Pressure Gas Systems
High-pressure isolation is about more than selecting a valve with the right pressure rating.
As pressure increases, the pressure-containing components must retain their structural integrity while the seating system continues to provide dependable shut-off. Stem sealing, operating forces, material selection, temperature and connection design all become part of the same engineering decision.
There is also a practical consideration. A manual shut off valve may remain in one position for a long period before being called upon during commissioning, maintenance, system changeover or an unexpected event. Reliability therefore has to extend beyond initial installation and testing.
The Series 1020 was developed around this requirement: controlled, dependable manual isolation for specialist high-pressure gas systems.

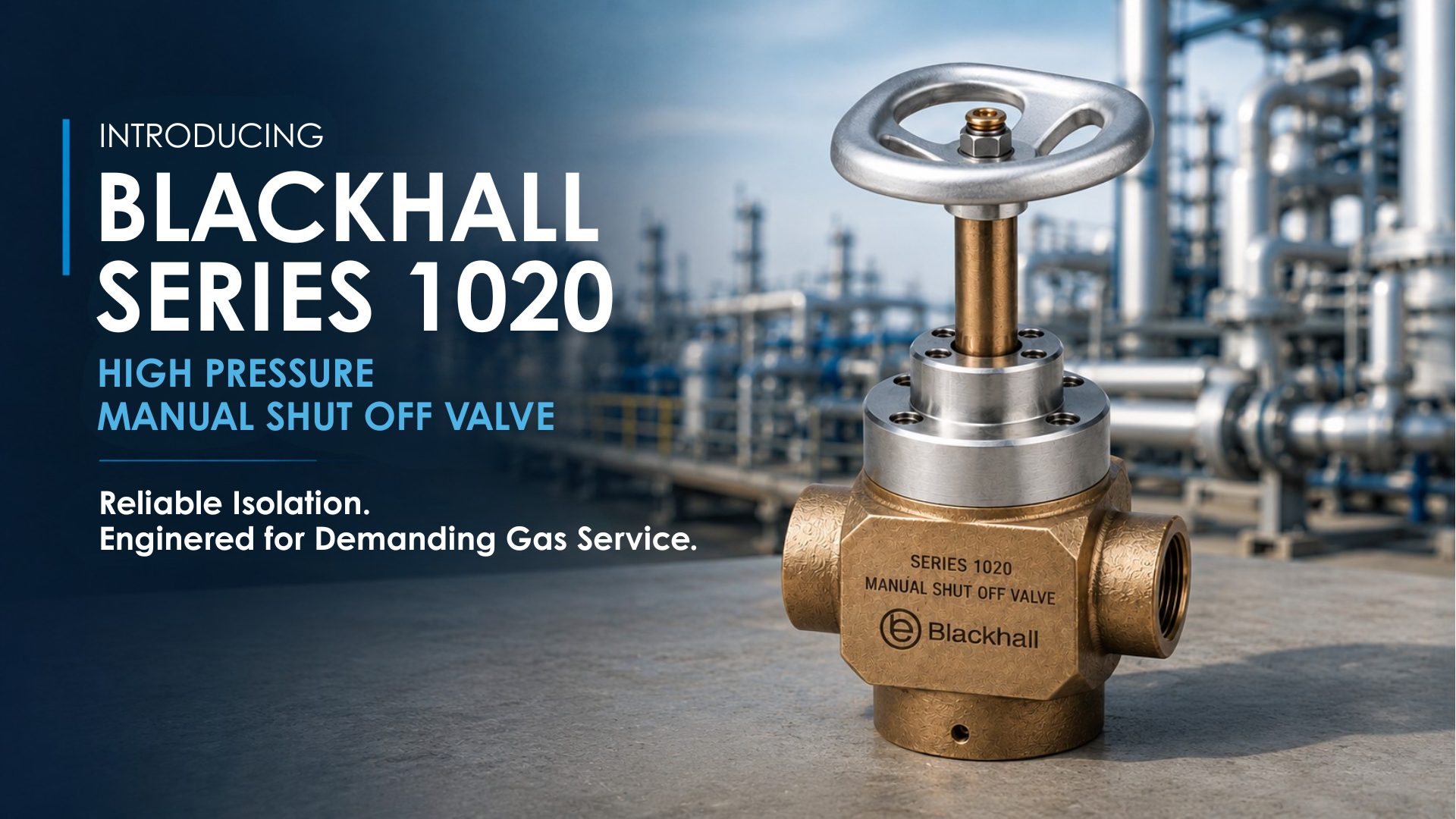

Meet the Series 1020 Manual Shut-Off Valve
The Series 1020 Manual Shut-Off Valve is a purpose-engineered globe valve for high-pressure gas isolation.
Its compact design and controlled manual operation make it suited to specialist gas systems where pressure, medium, temperature and installation conditions require a valve selected specifically for the application rather than a general-purpose solution.
As with any specialist gas valve, the final configuration depends on the duty. The operating medium, pressure and temperature range, connection requirements, materials, available installation envelope and testing requirements all need to be considered together.
Engineers can view current configurations and product data on the Series 1020 Manual Shut-Off Valve technical specification page.
High Pressure Is Only Part of the Specification
Industrial gas systems rarely operate under one universal set of conditions. A valve may encounter compressed gas at elevated pressure in one part of a system and significantly lower temperatures elsewhere in the process.
Pressure and temperature therefore need to be considered together.
Material behaviour, sealing performance and pressure integrity must remain predictable throughout the specified operating envelope. Selecting a high pressure valve on pressure rating alone can overlook an equally important part of its duty.
For applications involving dedicated cryogenic service, Blackhall also manufactures an established range of cryogenic gate, globe and diverter valves for the production, storage and transportation of industrial gases.
Supporting Hydrogen and Industrial Gas Applications
Hydrogen is one of the key applications for high-pressure valve technology. Alongside its established use in industry, investment in hydrogen production, storage, transportation and energy infrastructure is creating new requirements for specialist flow-control equipment.
The Series 1020 provides a manual isolation option for suitable high-pressure hydrogen applications, supported by Blackhall’s wider experience with hydrogen, helium, cryogenic and specialist industrial gas duties.
It can also support applications involving other industrial gases, including oxygen and nitrogen, subject to the required configuration and operating conditions.
The distinction matters because each medium introduces different engineering considerations. Oxygen service, for example, places particular emphasis on material compatibility, cleanliness and contamination control. A high pressure hydrogen valve, meanwhile, requires careful consideration of containment, materials and the specified operating environment.
Customers working on hydrogen projects can explore Blackhall’s wider hydrogen valve range alongside the Series 1020.
High-Pressure Isolation for Defence and Marine Applications
Not every high-pressure gas system sits within a conventional industrial gas plant. Similar isolation requirements can be found in defence and marine environments, where equipment may need to operate within restricted spaces and demanding technical conditions.
These applications can require compact manual isolation for specialist gas handling systems, mobile installations and engineered equipment packages. Manufacturing quality, traceability, documentation and long-term product support can be just as important as the valve’s basic operating specification.
The Series 1020 extends Blackhall’s existing specialist valve capability into this area of high-pressure manual gas isolation. As project requirements can vary considerably, configurations are assessed against the individual application and any applicable qualification, testing or documentation requirements.
Designed and Manufactured in the UK
The Series 1020 sits within Blackhall’s wider British design and manufacturing capability, keeping engineering closely connected to the people responsible for manufacture, inspection and testing.
That connection is particularly valuable with specialist valves. A customer requirement can be considered not simply as a list of numbers on a datasheet, but in the context of how the valve will be manufactured, installed, operated and maintained within the wider system.
Where the application requires it, Blackhall’s engineering capability includes techniques such as finite element analysis (FEA) and computational fluid dynamic analysis (CFDA). These tools support the engineering process, but they do not replace engineering judgement.
Blackhall’s Valvologists® use that combination of analysis, application knowledge and practical valve engineering to assess the requirements behind each project.
For the Series 1020, that approach brings together British Manufacturing, Innovation and People around three qualities central to critical engineering: Dependability, Integrity and Intelligence.
Specifying a Series 1020 Manual Shut-Off Valve
The best place to start an enquiry is with the application itself. Providing the operating requirements at RFQ stage allows the engineering team to assess the appropriate configuration and identify potential application-specific considerations early.
Useful specification information includes:
- Gas or process medium
- Operating and design pressure
- Operating and design temperature
- Valve size
- End connection requirements
- Material requirements
- Installation orientation and available envelope
- Shut-off requirements
- Gas-specific cleaning requirements
- Testing and certification
- Quantity and project documentation requirements
These details help determine whether the Series 1020 is appropriate for the duty and which configuration should be considered.
Current technical data, available configurations and product information can be found on the Series 1020 Manual Shut-Off Valve product page.
Discuss Your High-Pressure Gas Application
High-pressure gas applications do not always fit neatly into a standard valve specification. The medium may be unusual, temperatures may vary considerably, installation space may be restricted or a project may have specific testing, certification or documentation requirements.
This is where discussing the application early can make a real difference.
Blackhall’s Valvologists® can work with engineers, operators, OEMs and project teams to review the medium, pressure, temperature, installation constraints and technical requirements before recommending an appropriate solution.
Whether the requirement is for a hydrogen isolation valve, oxygen shut off valve, industrial gas shut off valve or another specialist manual isolation valve, the starting point is the same: understanding the application and establishing what dependable isolation needs to look like within that system.
Explore the Series 1020 Manual Shut-Off Valve or contact Blackhall Engineering to discuss your high-pressure gas application with our Valvologists®.
